The Trailer Parts Outlet - Trailer 3 Leaf Double Eye Spring Suspension and Single Axle Hanger Kit for 1 3/4" Tube - 2000 lb Axles

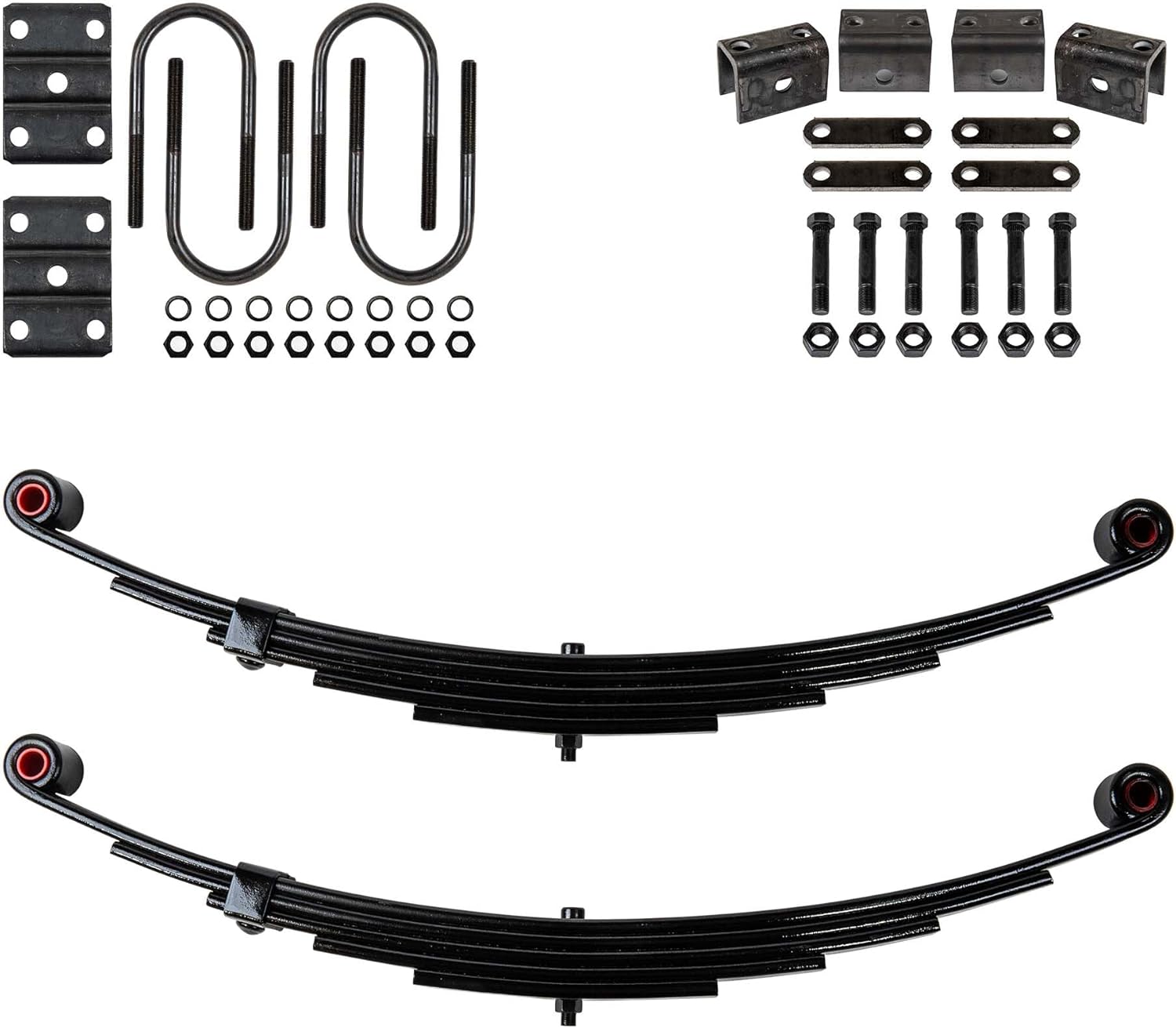

When ordering raw materials, you can expect minor rust and oils that will need to be cleaned upon arrival to you.Contents:(2) 3 Leaf 25 1/4" x 1.75" Trailer Double Eye Spring for 2000 lb Axles(4) 4-1/4" Long U-bolts - Zinc(2) U-bolt Tie Plates - Zinc - for 1-3/4" Spring(8) 3/8" Hex NutsL=4 1/4" A=1 3/4" D=3/8"(2) 1-1/2" tall front hangers(2) 7/8" tall rear hangers(4) 3-1/8" long shackle straps(6) 3" long x 9/16" diameter shackle bolts(6) 9/16" diameter lock nutsFeatures:Spring Specs: Number of leaves: 3, 1.75" Wide, 25.25" Long (from center to center of the eyes), 11/16" Eye Diameter, Nylon Bushing, 1000 lb capacity each, Axle capacity: 2,000 lbs.This kit has everything you need to mount your trailer's 1-3/4" round axle.Spring seats required for mounting axle to leaf spring sold separately.Will replace Suspension on Axle Brands: Dexter, AlKO, Hayes, Rockwell American, Quality Axles.

• Contents: (2) 3 Leaf 25 1/4" x 1.75" Trailer Double Eye Spring for 2000 lb Axles, (4) 4-1/4" Long U-bolts, (2) U-bolt Tie Plates for 1-3/4" Spring, (8) 3/8" Hex Nuts, L=4 1/4" A=1 3/4" D=3/8", (2) 1-1/2" tall front hangers, (2) 7/8" tall rear hangers, (4) 3-1/8" long shackle straps, (6) 3" long x 9/16" diameter shackle bolts, (6) 9/16" diameter lock nuts
• Spring Specs: Number of leaves: 3, 1.75" Wide, 25.25" Long (from center to center of the eyes), 11/16""" Eye Diameter, Nylon Bushing, 1000 lb capacity each, Axle capacity: 2,000 lbs.
• This kit has everything you need to mount your trailer's 1-3/4" round axle.
• Spring seats required for mounting axle to leaf spring sold separately.
• Will replace Suspension on Axle Brands: Dexter, AlKO, Hayes, Rockwell American, Quality Axles.
