KEYENCE PG-602 Photoelectric Sensor New

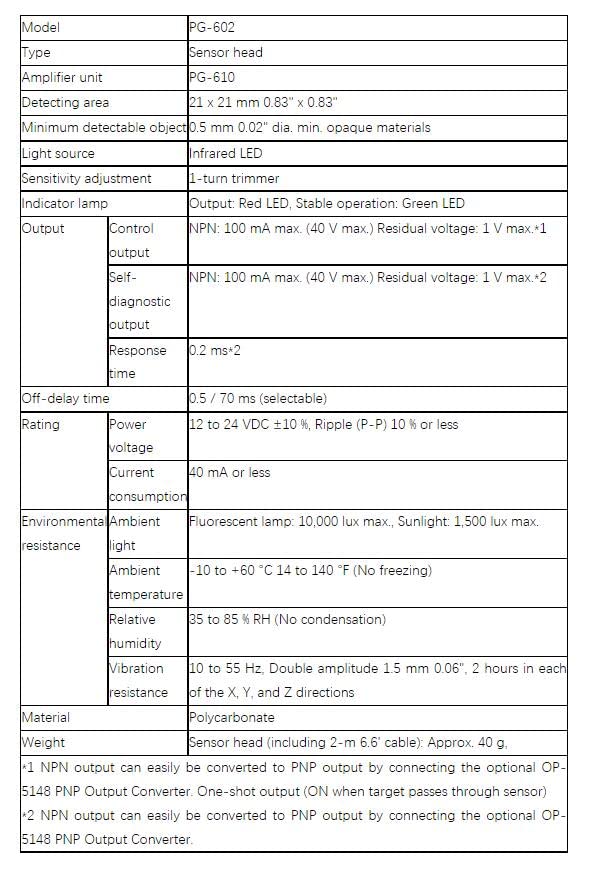

KEYENCE PG-602 Photoelectric Sensor NewSpecifications:Model: PG-602Type: Sensor headAmplifier unit: PG-610Detecting area: 21 x 21 mm 0.83" x 0.83"Minimum detectable object: 0.5 mm 0.02" dia. min. opaque materialsLight source: Infrared LEDSensitivity adjustment: 1-turn trimmerIndicator lamp: Output: Red LED, Stable operation: Green LEDOutput:1. Control output: NPN: 100 mA max. (40 V max.) Residual voltage: 1 V max.*12. Self-diagnostic output: NPN: 100 mA max. (40 V max.) Residual voltage: 1 V max.*23. Response time: 0.2 ms*2Off-delay time: 0.5 / 70 ms (selectable)Rating:1. Power voltage: 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less2. Current consumption: 40 mA or lessEnvironmental resistance:1. Ambient light: Fluorescent lamp: 10,000 lux max., Sunlight: 1,500 lux max.2. Ambient temperature: -10 to +60 °C 14 to 140 °F (No freezing)3. Relative humidity: 35 to 85 % RH (No condensation)4. Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directionsMaterial: PolycarbonateWeight: Sensor head (including 2-m 6.6' cable): Approx. 40 g,

• Model: PG-602
• Type: Sensor head
• Amplifier unit: PG-610
• Detecting area: 21 x 21 mm 0.83" x 0.83"
• Minimum detectable object: 0.5 mm 0.02" dia. min. opaque materials
