ESP32-S3 4.3inch Display Development Board, 800x480 Pixel IPS LCD Screen, 32-bit LX7 Dual-Core Processor, Up to 240MHz Frequency, Onboard CAN RS485 I2C Interfaces, Support W F& BLE 5 (No Touch)
4.9 (125 items)
Limited Time Sale$21.89 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 220086505 | Release Date | 2026/05/03 | List Price | $14.59 | Model Number | 220086505 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

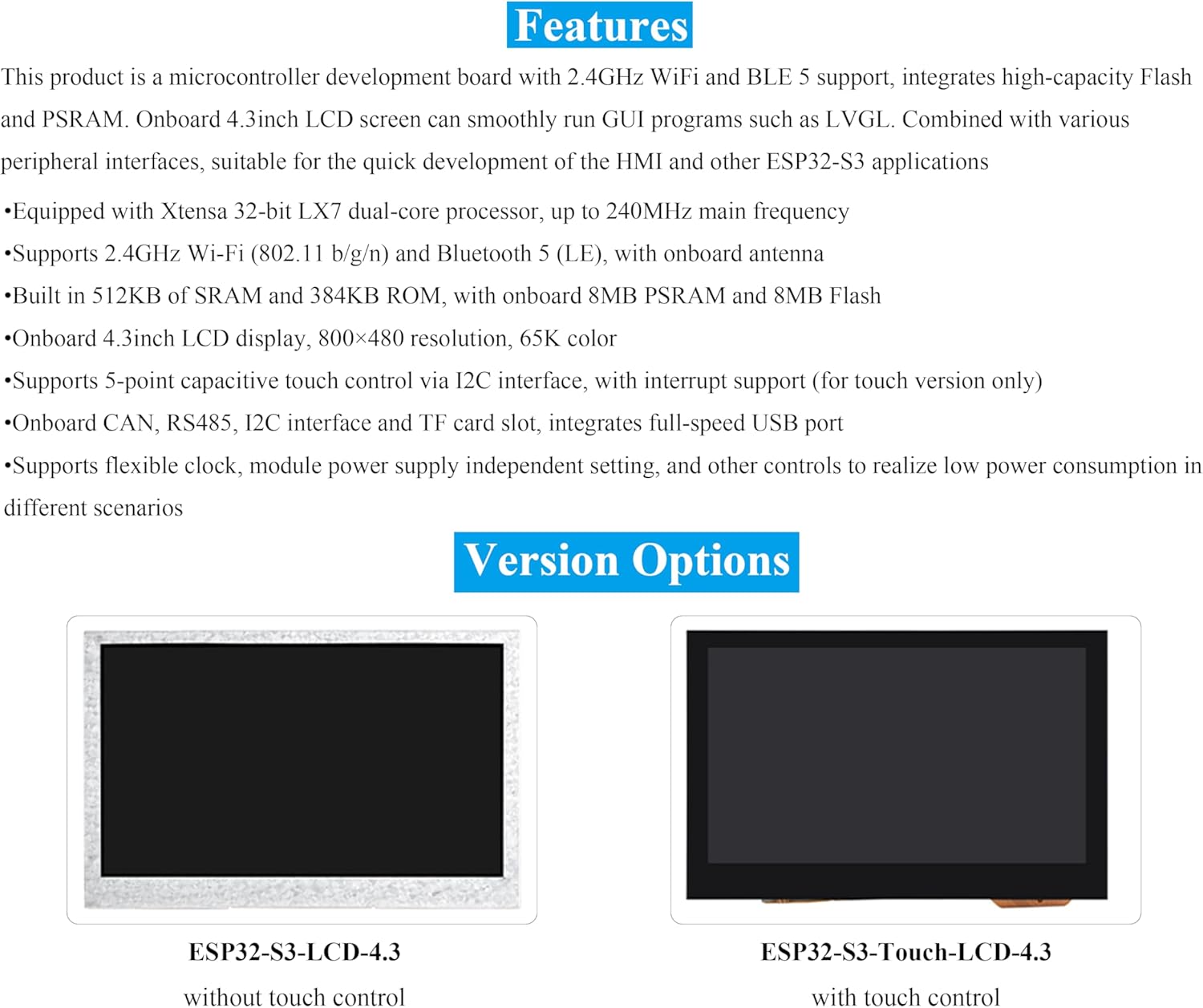

- There are Two Versions: With Touch Function and Without Touch Function. This is ESP32-S3 4.3inch Display Development Board Without Touch Function Version.
- This is ESP32-S3 Development Board, onboard 4.3inch LCD display, 800×480 resolution, 65K color, IPS Display Panel, excellent display performance, 160° viewing angle.
- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz W -i-Fi (802.11 b/g/n) and BLE 5 (LE), with onboard antenna. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash.

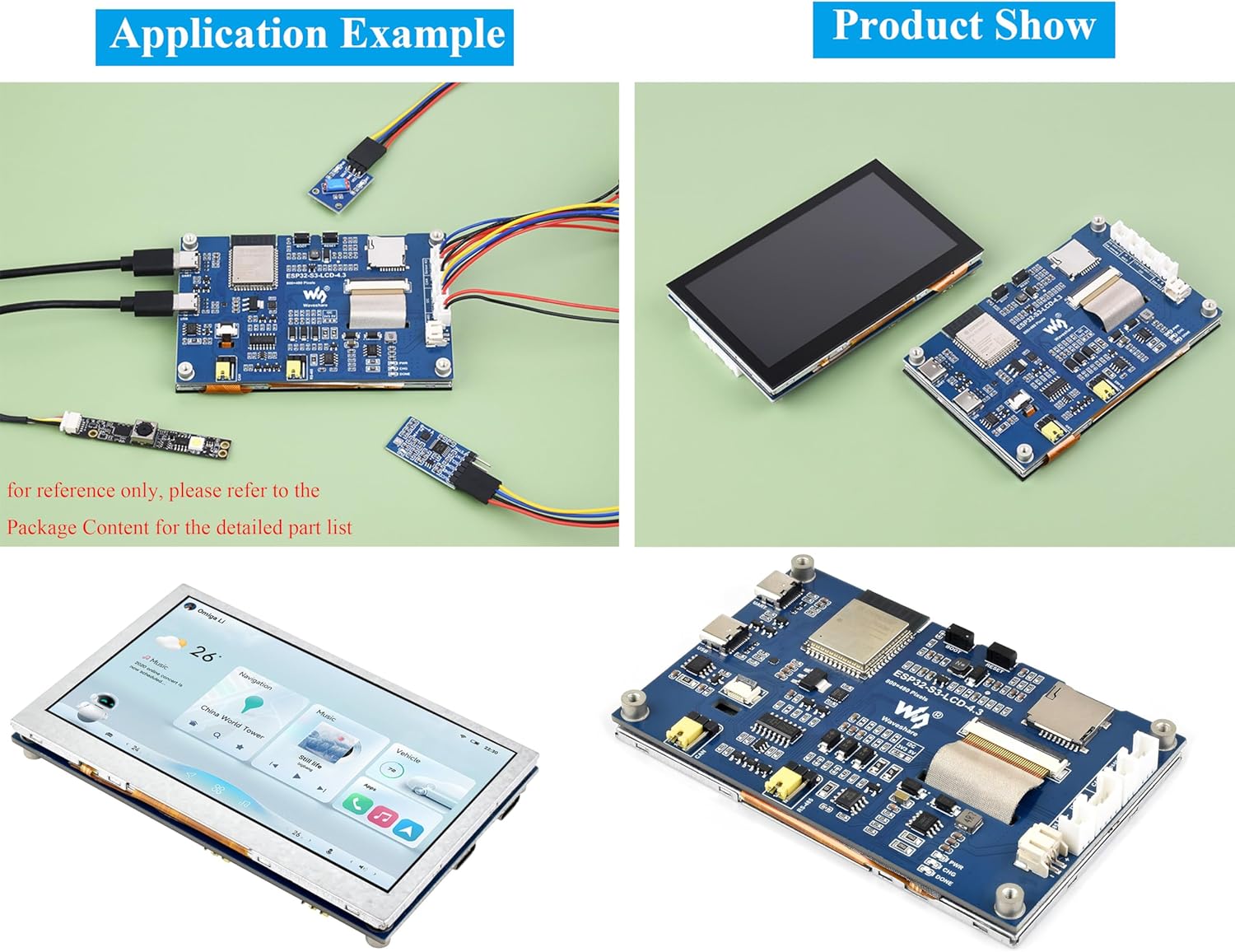

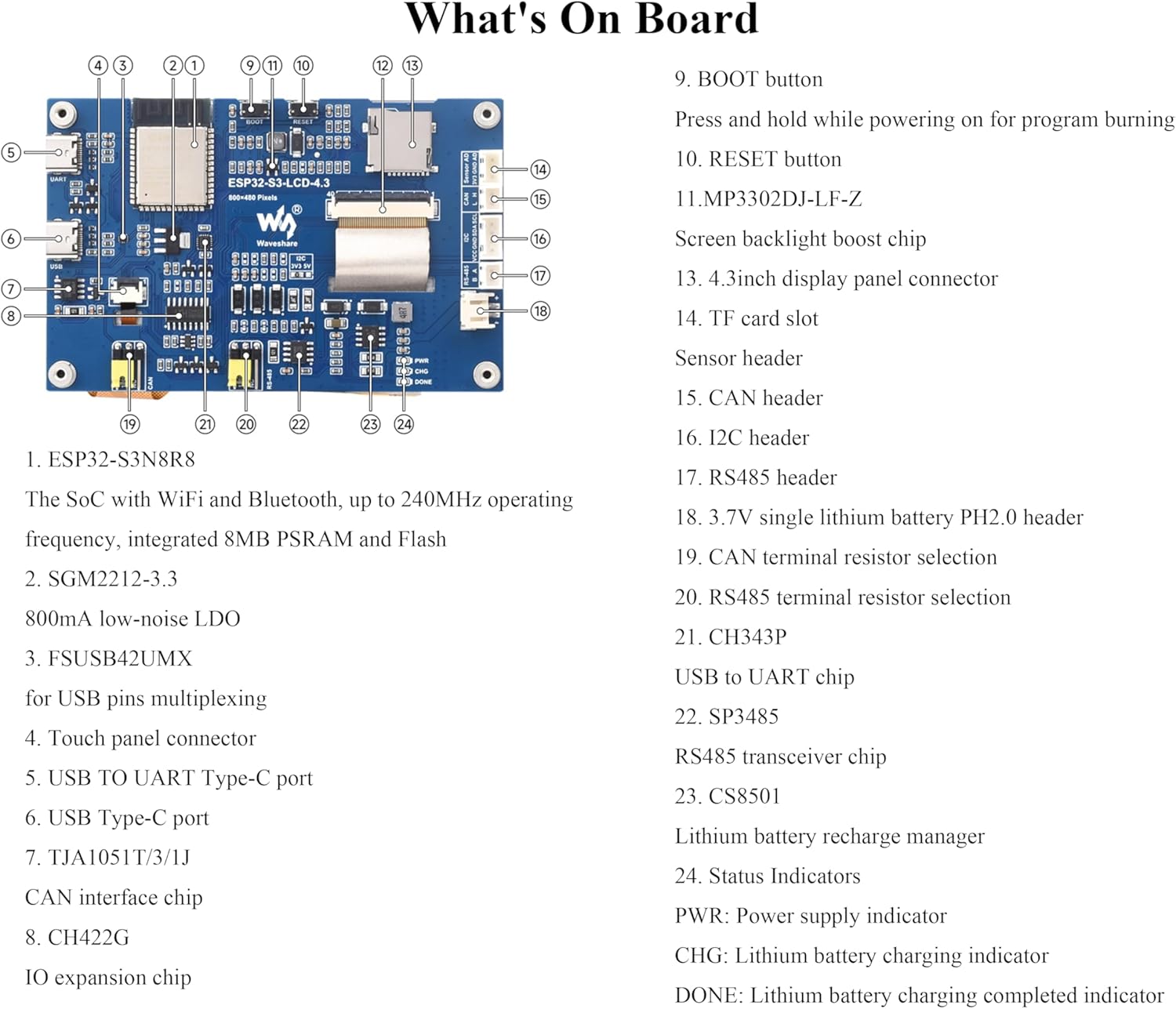

- Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port. Supports the expansion of multiple peripherals via Sensor, CAN, RS485, and I2C interfaces.
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios.
| Brand | UeeKKoo |
|---|---|
| Manufacturer | UeeKKoo |
| Model Number | ESP32-S3-LCD-4.3 |
| BuiltIn Media | ESP32-S3-LCD-4.3 x1, HY2.0 2P to 2PIN male cable 10cm x2, HY2.0 3P to 3PIN male cable 10cm x1, HY2.0 4P to 4PIN male cable 10cm x1, Standoff pack x1 |
| Mfr Part Number | ESP32-S3-LCD-4.3 |
| Processor Count | 2 |
| Total Usb Ports | 1 |
| Warranty Description | Technical Support is provided |
| Memory Storage Capacity | 8 MB |
